HZS180 concrete batching plant

Production capacity: 180m3/h
Total power: 215.5kw
Equipment model: JS3000

Field of application: Key technical advantages of HZS180 concrete mixing plant construction Shangxin Machinery is committed to the pursuit of reasonable product cost, stable performance, and superb appearance structure.

E-Mail:jianxin@zzjxcorp.com

WhatsApp:0086-18437125333

Get a Quote Chat Online

JIANXIN The HZS180 concrete mixing station is equipped with a computer management system and an automatic control system developed by our company. The operation is simple and convenient. Using Windows2000 operating system, full Chinese menu display, the entire process of all equipment state simulation display and equipped with sound and light alarm. When working in the mixing station, after only a few buttons are operated, the entire work process is transferred to the computer control. Mixing host uses JS3000 double horizontal shaft forced mixing host, the main electrical components imported products. The configuration of the HZS180 series mixing plant is characterized by excellent stirring performance, accurate and stable metering, high reliability, convenient maintenance, high environmental performance, and a high degree of modularity. It is ideal and preferred equipment for concrete construction and commercial concrete production.
HZS180 concrete mixing plant production line equipment mainly includes twin-shaft mixer, batching machine, cement warehouse and screw conveyor, conveyor belt, and computer control room. The theoretical productivity is 180m3/h, the power of the mixing master is 110KW, the nominal capacity of the mixer is 3000L, the number of bins of the batching machine is 4 cells, the batching capacity is 4800L, 3×100t, the capacity of the silo is measured and the precision (0～1600) ) ± 1% kg, the range and accuracy of the admixture weighing (0 ~ 50) ± 1% kg, the measurement accuracy of aggregate weighing ± 2%, the discharge height of 3.8 meters, the total installed power of 215.5KW, in order to meet the production demand.

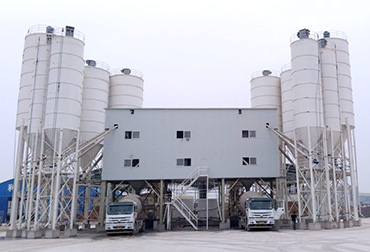

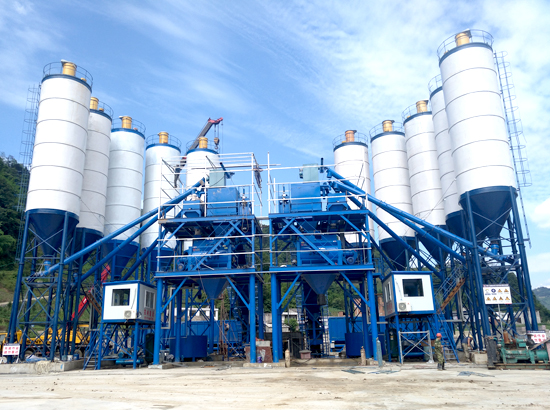

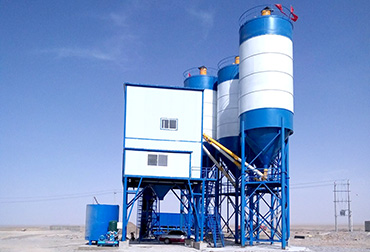

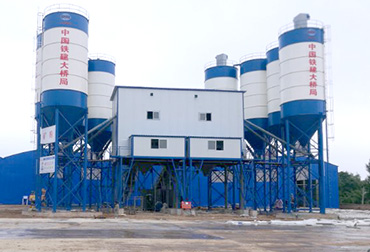

Shandong shuang180 concrete mixing plant
Shaanxi double 180 concrete mixing plant
Tangshan double 180 concrete mixing plant
Xining 180 concrete mixing plant
Xinjiang 180 concrete mixing plant
Yunnan double 180 concrete mixing plant

01
Mixer system

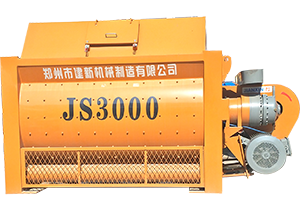

JS3000 forced concrete mixer has the double superiority of single machine independent operation and 180 concrete mixing plant with PLD series batching machine. 3000 twin-shaft forced mixer is a compulsory and efficient equipment that can produce plastic, Various concretes such as dry hard concrete.
02
Mixer system

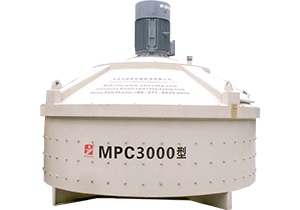

The MPC3000 vertical shaft planetary mixer is composed of: the mixing arm and its blades make planetary motions, the mixing track is continuous, the mixing motion is violent, and the homogeneity is good; The board cleans the bottom material, and the side scraper cleans the side material, with automatic cleaning function.
03
Batching system

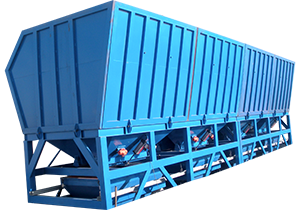

The PLD4800 concrete batching machine has a "one" structure as a whole. Both the storage hopper and the weighing hopper are designed with pneumatic sector doors. The weighing method is sensor weighing, which can measure the four kinds of aggregates separately to improve the accuracy of batching.
04

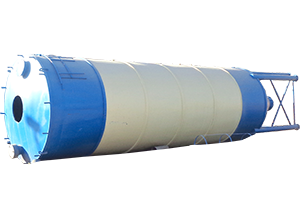

Cement silo

The cement silo is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo. The upper and lower parts of the cement silo are equipped with level gauges and dust removal systems; It can be designed as a sheet cement warehouse, which is convenient to transport and easy to use.
05
Conveying system

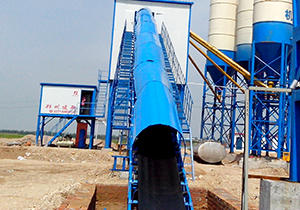

The aggregate conveying system adopts the lifting bucket feeding method. The big advantage is that it occupies a small space and saves land resources. The belt conveyor is an ideal efficient continuous transportation equipment, which has the advantages of long transportation distance, continuous transportation.
06

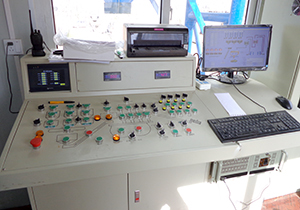

Control System

The center of the 180 concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print report data.
