Production capacity: 35m3/h
Total power: 38kw
Equipment model: JS750
YHZS75 Mobile concrete mixing plant
Korea YHZS50 Mobile concrete mixing plant
Shanxi YHZS50 Mobile concrete mixing plant
Taiwan YHZS50 Mobile concrete mixing plant
Taiwan YHZS60 Mobile concrete mixing plant
Changchun YHZS50 Mobile concrete mixing plant

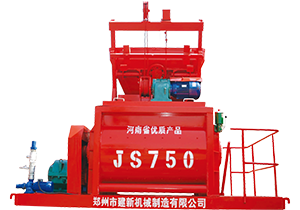

The mixing system of JS750 concrete mixer is composed of motor, belt pulley, reducer, open gear, mixing drum mixing device, oil supply device and other components. When working, the motor drives the two-stage gear reducer, and the two shafts of the reducer drive the two horizontal agitating shafts to rotate at the same speed in the opposite direction through the two split gears.

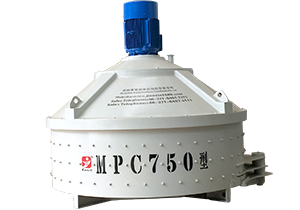

The mixing system of MPC750 vertical shaft planetary mixer is composed of: the mixing arm and its blades do planetary motion, the mixing track is continuous, and the homogeneity is good; the angle of the mixing blade is reasonable, the mixing efficiency is high; The board cleans the bottom material, and the side scraper cleans the side material, with automatic cleaning function.

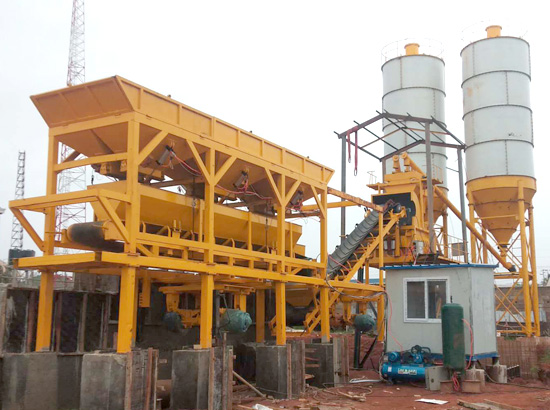

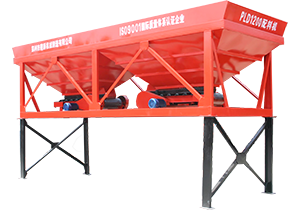

The YHZS35 mobile mixing station uses the PLD1200 concrete batching machine, which uses a loader or a belt conveyor to feed the sand and gravel batching device, which can be equipped with two to four different materials, and is used in conjunction with various types of mixers and other metering devices. It can be combined into a fully automatic and semi-automatic mixing station.

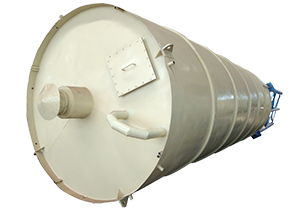

The cement silo is divided into three types: bolted cement silo, integral cement silo, and horizontal cement silo. The upper and lower parts of the cement silo are equipped with level gauges and dust removal systems; it can be designed as a sheet cement warehouse, which is convenient to transport and easy to use.
The aggregate conveying system adopts the lifting bucket feeding method, which has the advantage of occupying a small space and saving land resources. Belt conveyor is an ideal high-efficiency continuous transportation equipment. It has the advantages of long transportation distance, large transportation volume, continuous transportation, etc.
The center of the 35 mobile mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print report data.
| project |
Theoretical productivity (m3/h) |
Mixer | Batching machine |
Conveyer capacity of belt conveyer (t/h) |
Drag speed （km/h） |
Wheelbase (lateral) （mm） |
Turning radius （mm） |
Total power (kW) |
Unloading height |
| YHZS35 | 35m³/h | JS750 | PLD1200 |
200 |
15 | 3200 |
15 |
38 |
4.0 |
| project |
Theoretical productivity (m3/h) |
Mixer | Batching machine |
| YHZS35 | 35m³/h | JS750 | PLD1200 |
