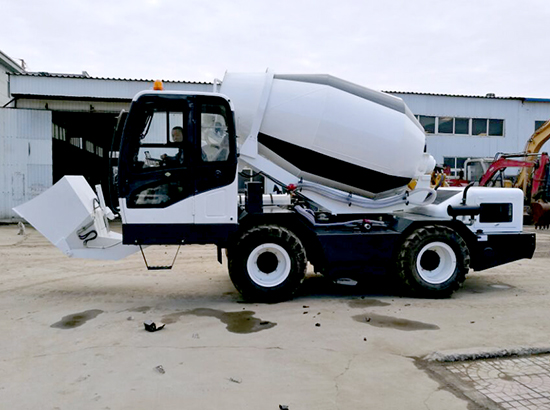

3.5 cubic meter self-loading mixer

Field of application: 3.5 square Self-Loading mixer has a hydraulic electronic weighing scale can accurately weigh sand, cement, and can automatically quantify the water, so that the concrete ratio is more accurate.
WhatsApp:0086-18437125333
Equipment introduction
3.5 square Self-Loading mixer has a hydraulic electronic weighing scale can accurately weigh sand, cement, and can automatically quantify the water, so that the concrete ratio is more accurate. It combines the functions of an existing concrete transporter and a mixing station. It can automatically feed, meter, stir, and unload materials to realize the integration of transportation and on-site construction operations. It greatly improve the efficiency, equipment utilization, reduce labor costs! The 3.5 side automatic feeding mixer has a reasonable design, compact structure, flexible operation and convenient maintenance.

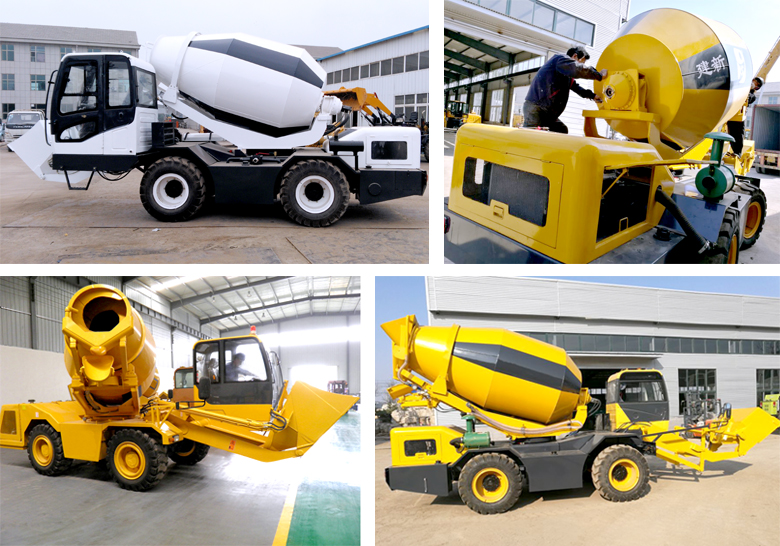

3.5 cubic meter self-loading mixer
Technical Parameters
type  parameter
 Mixing system  The drum capacity is 5.3 cubic meters and the actual mixing volume is 3.5 cubic meters. The horizontal rotation is 270 degrees, the height of the discharge port is 1.7 meters
Throughput 3.5m³,12m³/hr.
 Diesel engine  Yulai 4105 pressurized water cooling, 4 cylinders. 85kW/2200rpm.
 Transmission mode  Full hydraulic drive. 4 wheel drive, front wheel steering. Liu Feng car bridge.
 Walking speed  Low speed 0 - 10km/h, high speed 0 - 30 km/h.
Cab  Left driving, anti turn, anti drop cab. Front loading shovel.
 Hydraulic system  280 torque converter
Joystick  Hydraulic pilot handle joystick
 A scraper bucket  450 liters, hydraulic gate.
chute  Hydraulic adjustment angle to increase discharge length, chute can swing within 120 degrees.
 Water supply system  2 x 300 liters. Hydraulic drive self suction pump water. A high pressure water pump is used to flush the vehicle.
brake  Pneumatic brake. Double independent circuit.
tyre  Special tire 16 / 70-20 for construction machinery
 electric power system 24Volt
tank  Diesel tank: 100 litres. Hydraulic tank: 140 liters.
weight 7500kg
 Shape size  Length: 7 meters wide: 2.36 meters high: 3.15 meters.
metering  Electronic weighing, water meter. Formula controlled
 Wheelbase 2.0m
 Unloading height 1.7m
type  parameter
 Mixing system  The drum capacity is 5.3 cubic meters and the actual mixing volume is 3.5 cubic meters. The horizontal rotation is 270 degrees, the height of the discharge port is 1.7 meters
Throughput 3.5m³,12m³/hr.
 Diesel engine  Yulai 4105 pressurized water cooling, 4 cylinders. 85kW/2200rpm.
 Transmission mode  Full hydraulic drive. 4 wheel drive, front wheel steering. Liu Feng car bridge.
 Walking speed  Low speed 0 - 10km/h, high speed 0 - 30 km/h.
Cab  Left driving, anti turn, anti drop cab. Front loading shovel.
 Hydraulic system  280 torque converter
Joystick  Hydraulic pilot handle joystick
 A scraper bucket  450 liters, hydraulic gate.
chute  Hydraulic adjustment angle to increase discharge length, chute can swing within 120 degrees.
 Water supply system  2 x 300 liters. Hydraulic drive self suction pump water. A high pressure water pump is used to flush the vehicle.
brake  Pneumatic brake. Double independent circuit.
tyre  Special tire 16 / 70-20 for construction machinery
 electric power system 24Volt
tank  Diesel tank: 100 litres. Hydraulic tank: 140 liters.
weight 7500kg
 Shape size  Length: 7 meters wide: 2.36 meters high: 3.15 meters.
metering  Electronic weighing, water meter. Formula controlled
 Wheelbase 2.0m
 Unloading height 1.7m
Product advantages
1. The operation is simple and convenient.
2. High-efficiency output, save time and effort, and save costs.
3. The perfect combination of loader, mixer and tanker.
4. All-imported hydraulic system (Eton triple pump/travel motor/rotary motor)
5.270 degrees with rotating stirred tank, multi-angle discharge.
