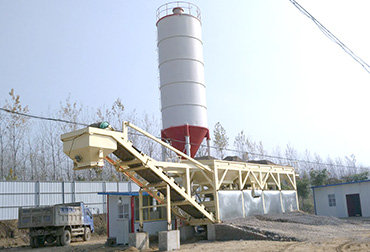

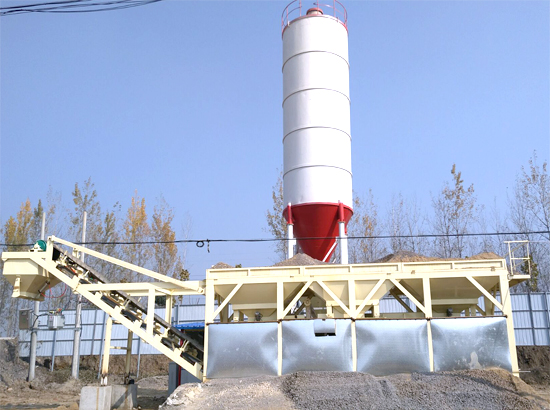

Stabilized soil mixing plant integrated machine

Field of application: Stabilized soil mixing plant integrated machine is also called mobile stabilized soil mixing station with a special structural design, a control unit, batching system, mixing system, etc. are integrated into a transportation unit, from control, to weighing and then to agitation, and then to the last unloading all programs are here...
WhatsApp:0086-18437125333
Equipment introduction

ZWB Integrated Stabilized Soil Mixing Plant equipment is a special structural design that integrates a control system, batching system, and agit,ation system into one transport unit. From the control, to the weighing and then to the agitation, all the procedures for the final unloading are Perform on this transport unit. Pulling or folding the device using the trailer traction can be easily moved and transferred.

Technical Parameters
Model ZWB300 ZWB400
productivity(t/h) 300 400
Power(kw) 70 95
 Overall weight (t) 12 14

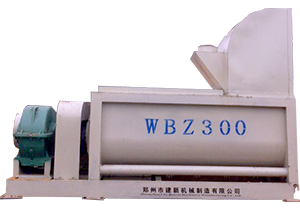

Mixer form Non liner double lying shaft forced mixing Non liner double lying shaft forced mixing
Model ZBG300 ZBG400
Maximum aggregate(mm) 65 65
Host power(kw) 2×22 2×30
Batching machine model 2×12m³ 2×7m³+1×12m³
productivity(t/h) 13m×8m 13.5m×8m
Measurement form frequency control、Full automatic control volume measurement frequency control、Full automatic control volume measurement
Aggregate variable frequency speed regulation volume measurement, cement through buffer bin three sensors decrement, dynamic weighing, automatic control electronic measurement. Aggregate variable frequency speed regulation volume measurement, cement through buffer bin three sensors decrement, dynamic weighing, automatic control electronic measurement.
Proportioning precision Volume measurement Granular material≤3%、Powder≤2%、water≤2% Granular material≤3%、Powder≤2%、water≤2%
Electronic metrology Granular material≤2%、Powder≤1%、water≤1.5% Granular material≤2%、Powder≤1%、water≤1.5%
ModelMaximum productivity(t/h)Power(kw)Overall weight(t)
ZWB300 300

75

12

ZWB400 400

95

14

Product advantages

Solution And CaseMore+

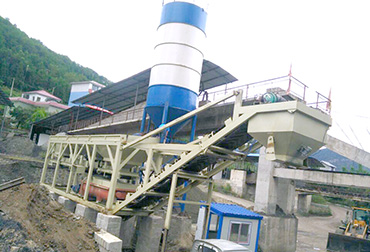

500 tons Stabilized Soil Mixing Plant Field Case in Wuhan

500 tons Stabilized Soil Mixing Plant Field Case in Wuhan

Production rate:500 t/h

Application Ranges:Stabilized soil mixer, aggregate bin, belt conveyor, cement silo, finished silo, control room and automatic control system.

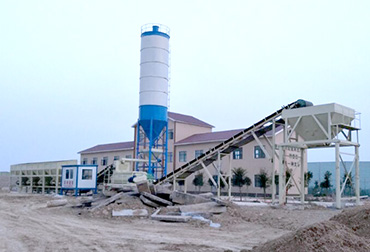

Hunan 500 tons stabilized soil mixing plant site case

Hunan 500 tons stabilized soil mixing plant site case

Production rate:500 t/h

Application Ranges:WBZ Mixer, Aggregate Bin, Belt Conveyor, Cement Silo, Finished Product Bin, Control Room and Automatic Control System.

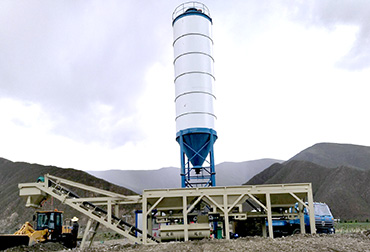

Hunan 300 tons stabilized soil mixing plant site case

Hunan 300 tons stabilized soil mixing plant site case

Production rate:300 t/h

Application Ranges:WBZ Mixer, Aggregate Bin, Belt Conveyor, Cement Silo, Finished Product Bin, Control Room and Automatic Control System.
