Production capacity: 120m3/h
Total power: 179.5kw
Equipment model: JS2000

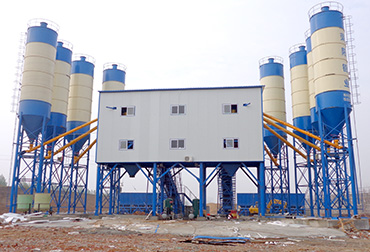

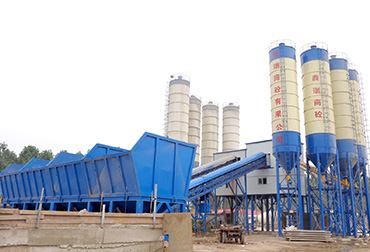

Dancheng 120 concrete mixing station

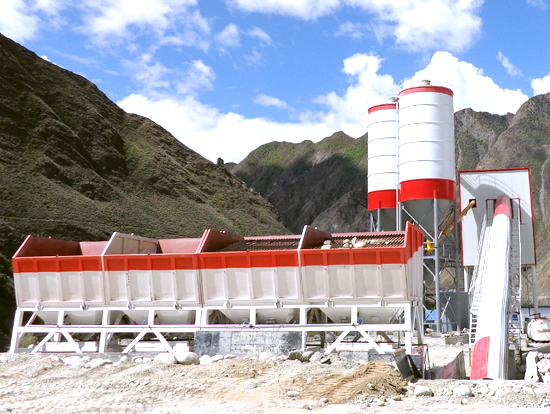

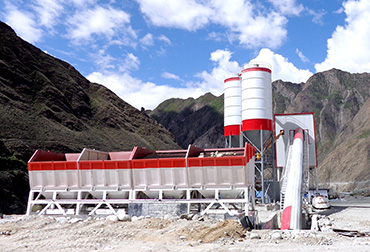

Lhasa 120 concrete mixing plant
Liuzhou shuang120 concrete mixing plant
Nanyang 120 concrete mixing plant

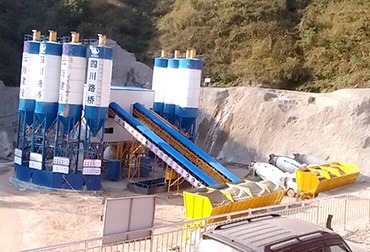

Yunnan shuang 120 concrete mixing plant

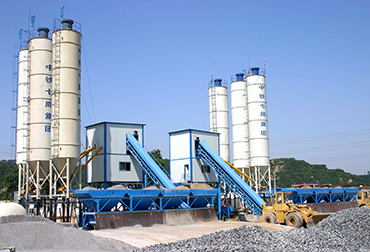

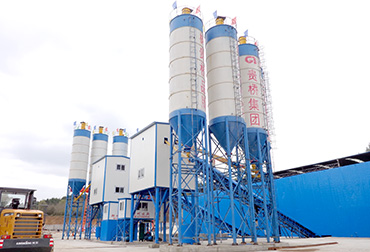

China railway 7 bureau 120 concrete mixing station
The 2000 concrete mixer is mainly divided into gate valve concrete pump and S valve concrete pump, but according to the structure, it can be divided into piston type, squeeze type, and hydraulic diaphragm type. The pump body is installed on the chassis of the car. The telescopic or inflexible placing boom forms a pump truck, which is mainly used in housing construction.

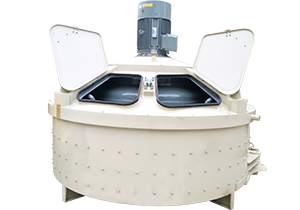

The MPC2000 vertical shaft planetary mixer adopts a special reducer device and vertical shaft planetary mixing design. Its mixing arm runs like a planet. It has the characteristics of omni-directional mixing without dead corners. Its mixing blades can also be used according to the wear condition. Ensure the low failure operation of the equipment and the efficient use of wearing parts.

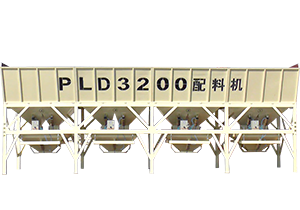

PLD3200 concrete batching machine model: PLD3200 three-storey batching machine, PLD3200 four-storey batching machine, often used as an ideal supporting batching device in large-scale commercial concrete mixing plants. The machine is suitable for mixing stations assembled on the construction site, and can be made into four or more buckets according to user needs.

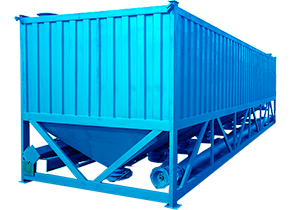

The cement silo is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo. The upper and lower parts of the cement silo are equipped with level gauges and dust removal systems; in order to prevent the powder from arching, a blower is installed at the cone of the silo Arch breaking device; it can be designed as a sheet cement warehouse, which is convenient to transport and easy to use.

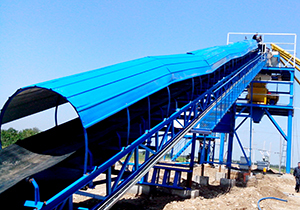

The screw conveyor adopts high-quality steel pipe with good rigidity; high-quality gearbox, heavy-duty design, large torque and low noise. Belt conveyors are generally used as aggregate conveying equipment for medium and large concrete mixing plants. They have the characteristics of strong conveying capacity, long conveying distance, simple structure and easy maintenance.

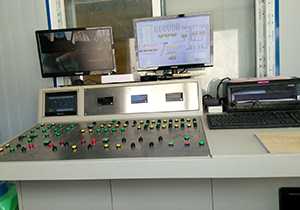

The center of the 120 concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print report data.
project | Maximum productivity | Mixer model | Batcher model | Discharge height | Working cycle time | Weighing accuracy | |||
HZS120 | 120m3/h | JS2000 | PLD3200 | 4100(mm) | 72(S) |
aggregate ±2% |
cement ±1% |
water ±1% |
Additives ±1% |
project | Maximum productivity | Mixer model | Batcher model |
HZS120 | 120m3/h | JS2000 | PLD3200 |
