YHZS50 mobile concrete batching plant

Production capacity: 50m3/h
Total power: 60kw
Equipment model: JS1000

Field of application: YHZS series mobile concrete mixing plant is a concrete mixing plant designed and developed by Zhengzhou Jianxin for users with short construction period, long construction line and frequent transition. The model is compact, small footprint and easy to install.

E-Mail:jianxin@zzjxcorp.com

WhatsApp:0086-18437125333

Get a Quote Chat Online

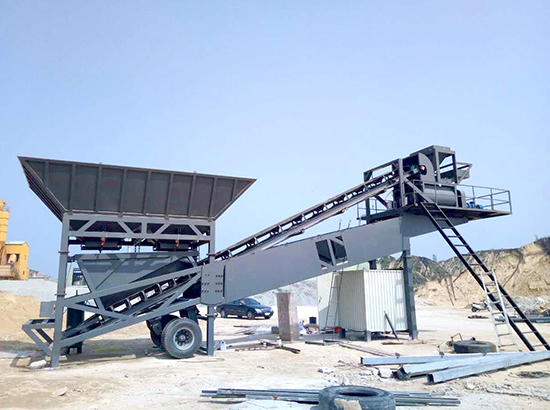

The YHZS50 mobile concrete mixing plant is a brand new type of ramming and stirring equipment that can be hung and moved. Its structure is novel, unique, compact and simple. With a cradle unit, a variety of operations including aggregate, weighing, conveying, and stirring are integrated, and the overall mobility is excellent. It absorbs many new technologies both at home and abroad in terms of performance. It is accurate and reliable in weighing, even and efficient in weighing, fast and clean in conveying, easy to operate and easy to move, and safe and reliable in hanging. It is the best in mobile construction of highways, bridges, ports, and hydropower projects. The best models.

YHZS75 Mobile concrete mixing plant
Korea YHZS50 Mobile concrete mixing plant
Shanxi YHZS50 Mobile concrete mixing plant
Taiwan YHZS50 Mobile concrete mixing plant
Taiwan YHZS60 Mobile concrete mixing plant
Changchun YHZS50 Mobile concrete mixing plant

01

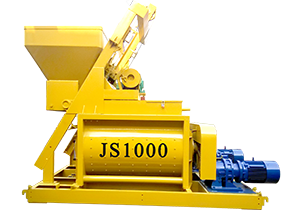

Mixer system
The mixing system is composed of belt pulley, reducer, open gear, motor, mixing drum mixing device and oil supply device. There is a special sealing device where the mixing shaft and the two ends of the mixing drum are connected. In order to ensure the sealing quality, a special oil supply device is installed on the end of the mixing drum.
02

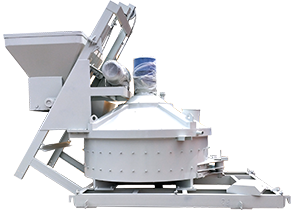

Mixer system
The mixing system of MPC1000 vertical shaft planetary mixer is composed of: the mixing arm and its blades make planetary motion, the mixing track is continuous, the mixing motion is violent, and the homogeneity is good; the angle of the mixing blade is reasonable, the production efficiency is high, and the wear of the liner and blades is reduced.
03

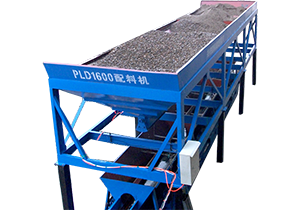

Batching system
The 50 mobile mixing plant uses the PLD1600 concrete batching machine, which is divided into two-bin batching machine and three-bin batching machine, which can effectively ensure the batching accuracy and improve productivity. The mechanism is simple, reliable in use, and convenient in operation and maintenance.
04

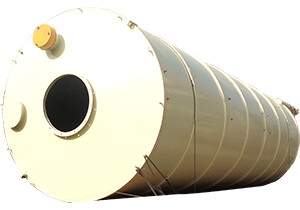

Cement silo
The cement silo is divided into three types: bolted cement silo, integral cement silo, and horizontal cement silo. The upper and lower parts of the cement silo are equipped with level gauges and dust removal systems; in order to prevent the powder from arching, a blower is installed at the cone of the silo Arch breaking device.
05

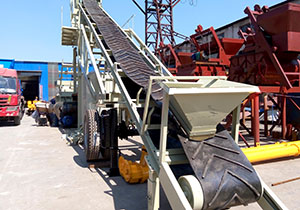

Conveying system
The aggregate conveying system adopts the lifting bucket feeding method, which has the advantage of occupying a small space and saving land resources. Belt conveyor is an ideal high-efficiency continuous transportation equipment. It is easy to realize automation and centralized control.
06

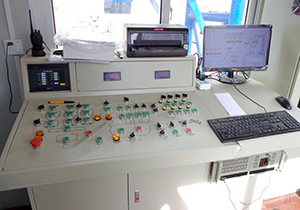

Control System
The center of the 50 concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print report data.

project	Theoretical productivity (m3/h)	Mixer	Batching machine	Conveyer capacity of belt conveyer (t/h)	Drag speed （km/h）	Wheelbase (lateral) （mm）	Turning radius （mm）	Total power (kW)	Unloading height (m)
YHZS50	50m³/h	JS1000	PLD1600	400	15	3400	15	60	4.0
