Production capacity: ≤35m3/h
Mixer model: JS750

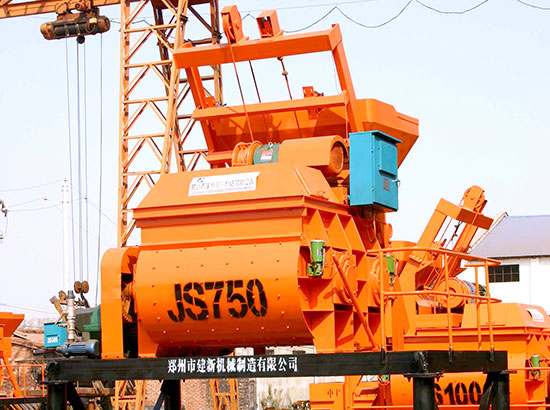

JS750 concrete mixer is a kind of twin horizontal shaft forced mixer.This mixer has double superiority to do independent operation alone, or form a simple concrete batching plant together with PLD series aggregate batching machine. Also can be used as concrete batching plant's main host.
JS750 concrete mixer Mixing system
JS750 concrete mixer mixing system consists of motor, pulley, gearbox, gear, stirring device, mixing drum and other components. The main motor is connected to the secondary gear reduction box through a belt, and finally the two horizontally-connected stirring shafts are respectively rotated by the two pairs of open gears at the same speed.
JS750 concrete mixer Feeding system
When the JS750 concrete mixer is feeded, the mixture to be mixed is placed in the hopper, the feeding system is started, and the wire rope pulling hopper is climbed upward. When climbing to a certain height, the hopper enters the feeding rack, the door is automatically opened, and the material is discharged into the mixing drum through the funnel.
JS750 concrete mixer Discharging system
The discharging system is located at the bottom of the JS750 concrete mixer and is unloaded by a manual push rod. According to customer requirements, the mixer can be produced in the form of electric push rod discharge. The connection between the discharge door and the mixing drum is sealed with a sealing plate, and the position of the sealing plate can be adjusted to ensure the purpose of sealing.
JS750 concrete mixer Electrical System
The electrical control system needs to control the main drive motor of the JS750 concrete mixer, the motor of the water supply system, the feeding and unloading of the motor. All electrical control components are located in the distribution box. The electrical components in the distribution box are installed on an iron plate, which is safe and reliable, and convenient for operation and maintenance.
|Project||Discharge capacity||Feed capacity||Theoretical productivity|
Maximum granule of aggregate
|Speed of mixing blade||Power of agitator||Improve motor power||Pump motor power|
（Length, width and height）
|Project||Discharge capacity（L）||Feed capacity（L）||Theoretical productivity（m³/h）|
Application Ranges:precast concrete
Application Ranges:construction of highway
Application Ranges:The main machine is JS2000 twin-shaft forced concrete mixer, concrete batching machine uses PLD3200 type, other equipments including belt conveyor, screw conveyor, cement silo, control room and so on.
