Mixer capacity: 1-2.5m³
Inlet height: 2.5m³-3.6m³
Outlet width: 1.4M-1.6M
Zhengzhou Jianxin Machinery Co., Ltd. : a manufacturer specializing in the production of three-wheel/tricycle mixer truck drum. Based on 37years of production and marketing experience, enable us to keep improving technology, constantly innovate technology, improve quality and improve service, and to provide customers with satisfactory mixing equipment.
|Model||Drum volume||Geometric capacity||Hydraulic motor||Power(HP)||Dimension(length* width *height)(mm)||Mixer Drum Weight|
|2-2.5M³ five-wheel one-cylinder engine||2-2.5m3||3.6m3||BMT30-125||32||5400x1950x2600||1200KG|
|2-2.5M³ five-wheel four cylinder engine||2-2.5m3||3.6m3||BMT30-125||76||5650x2100x2800||1200KG|
|Model||Drum volume||Geometric capacity||Hydraulic motor|
|2-2.5M³ five-wheel one-cylinder engine||2-2.5m3||3.6m3||BMT30-125|
|2-2.5M³ five-wheel four cylinder engine||2-2.5m3||3.6m3||BMT30-125|

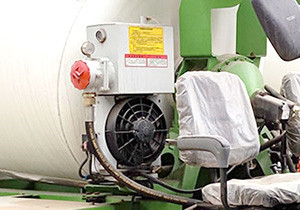

The radiator of hydraulic system is made of aluminum alloy material with light weight, good seismic strength and high heat exchange efficiency. In structure, the radiator has built-in fins to increase the heat dissipation area and speed up the heat conductivity.

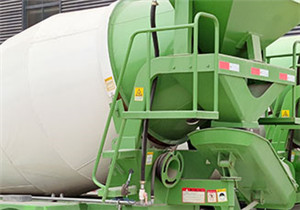

Ladders are installed at the left and right sides of the rear of the mixer drum, convenient for inspection of the feeding hopper. High brake warning lights are also installed on both sides of the ladder to warn the vehicles behind when driving.

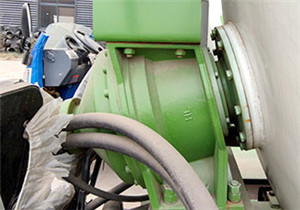

The reducer provides a strong and reliable driving system for the concrete mixer drum, with remarkable environmental protection characteristics, economy, high reliability output and long service life.

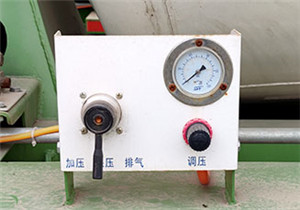

The air control assembly is beautiful and generous in appearance, which increases the highlights of the whole vehicle. It is light in weight and shock resistant. It has a built-in barometer, pressure regulating valve, three-way handle, etc., and has a simple structure and high cost performance.
The extend drum design reduces the center of gravity of the vehicle and makes the vehicle run more smoothly. The proper tilt angle also ensures the effective volume to ensure the interests of customers.

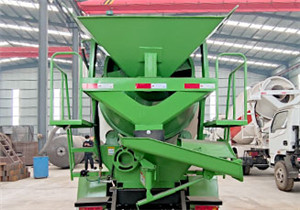

The feed inlet can be used for both dry and wet mixing. It is made of high-strength Q345B steel and has high wear resistance. The feed cone is designed as a funnel to ensure the smooth feeding of sand and prevent the overflow of concrete.
Application Ranges:precast concrete
Application Ranges:construction of highway
Application Ranges:The main machine is JS2000 twin-shaft forced concrete mixer, concrete batching machine uses PLD3200 type, other equipments including belt conveyor, screw conveyor, cement silo, control room and so on.
