Without base concrete batching plant

Field of application: The basic container-type mixing plant is exempted, and the modular structure design is adopted on the basis of the traditional mixing plant. The complete equipment consists of five standard container modules. The main working system of the mixing plant is placed in each container module, and these modules are reasonably Together constitute a set.
WhatsApp:0086-18437125333
Equipment introduction

The base container-free mixing plant is a new mixing station equipment introduced by Zhengzhou Jianxin Machinery. It is also composed of a stirring system, a control system, a material storage system, a weighing system, and a conveying system. The main components that make up the mixing station are distributed among several containers, and normal concrete mixing work can be started by directly putting together several containers. Outstanding environmental performance, convenient transportation and simple installation are suitable for the concrete mixing supply of various types of hydropower, highways, ports, airports, bridges and other construction projects, as well as the construction of commercial concrete mixing stations.

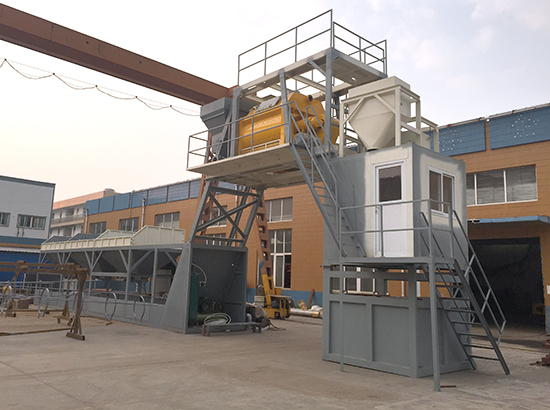

The basic container-type mixing plant
Main details
Technical Parameters
projectMaximum productivity Mixer ModelBatching machine modelUnloading heightWorking cycle timeQuantify precision
MHZS60 60m³/h JS1000 PLD1600 3800(mm) 72(S)

aggregate

±2%

cement

±1%

water

±1%

admixture

±1%

MHZS75 75m³/h JS1500A PLD2400 3800(mm) 72(S)

aggregate

±2%

cement

±1%

water

±1%

admixture

±1%

MHZS90 90m³/h JS1500B PLD2400 3800(mm) 72(S)

aggregate

±2%

cement

±1%

water

±1%

admixture

±1%

MHZS120 120m³/h JS2000 PLD3200 3800(mm) 72(S)

aggregate

±2%

cement

±1%

water

±1%

admixture

±1%

MHZS150 150m³/h JS3000 PLD3200 4100(mm) 72(S)

aggregate

±2%

cement

±1%

water

±1%

admixture

±1%

MHZS180 180m³/h JS3000 PLD4800 4100(mm) 72(S)

aggregate

±2%

cement

±1%

water

±1%

admixture

±1%

projectMaximum productivity Mixer ModelBatching machine model
MHZS60 60m³/h JS1000 PLD1600
MHZS75 75m³/h JS1500A PLD2400
MHZS90 90m³/h JS1500B PLD2400
MHZS120 120m³/h JS2000 PLD3200
MHZS150 150m³/h JS3000 PLD3200
MHZS180 180m³/h JS3000 PLD4800

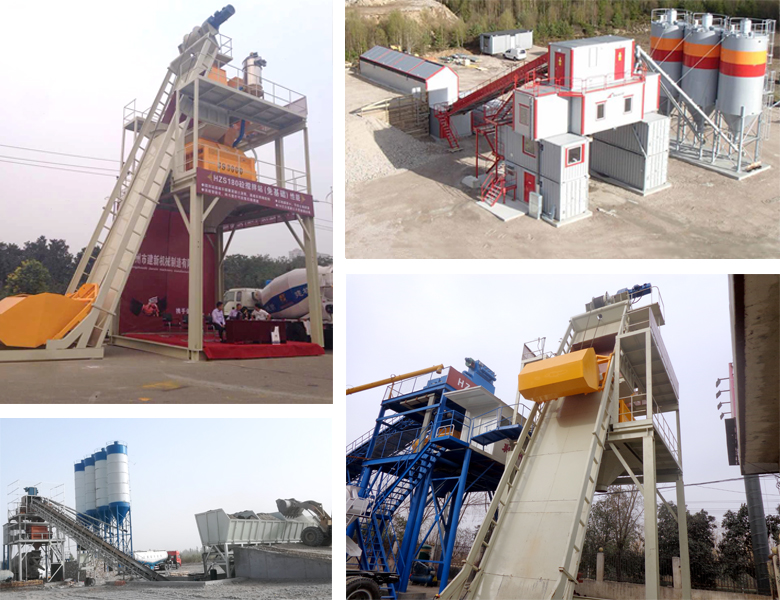

Solution And CaseMore+

HZS75 Concrete Mixing Station start Installation and Commissioning in Kashifu County Xinjiang

HZS75 Concrete Mixing Station start Installation and Commissioning in Kashifu County Xinjiang

Production rate:75m3/h

Application Ranges:precast concrete

Jianxin 60 Concrete Mixing Station Was Successfully Put into Operation in Outer Mongolia

Jianxin 60 Concrete Mixing Station Was Successfully Put into Operation in Outer Mongolia

Production rate:60m3/h

Application Ranges:construction of highway

 Case study of Nanping HZS120 concrete mixing plant in Nanch

Case study of Nanping HZS120 concrete mixing plant in Nanch

Production rate:120m3/h

Application Ranges:The main machine is JS2000 twin-shaft forced concrete mixer, concrete batching machine uses PLD3200 type, other equipments including belt conveyor, screw conveyor, cement silo, control room and so on.
